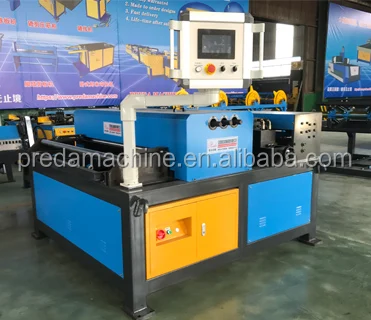

Auto duct production line 2 - Preda Machine
Auto duct production line 2 - Preda Machine
Auto duct production line 2 - Preda Machine
- Detail
- Parameters
- Review
Workstations and functions:
1.Electric decoilers (2 sets of rollers) driven by independent frequency controlled motors.
2.Multi-functional main body with capability of leveling, beading, notching(capable of sharp notching, TDF notching) and plate shearing.
3. Mitsubishi computer controlling system and software.
4. Mitsubishi and Siemens electric box and electrics.
Main Import Configuration:
1) MITSUBISHI Display and PLC.
2) MITSUBISHI Frequency Converter.
3) Taiwan High Temperature Resistant Tubing.
4) Taiwan high quality Pump.
Machine Parts
Name: Shearing Blade
Material: 9CrSi
Features: Shearing station
Used for plate shearing of the duct plate formed.
It is the last station of Preda Machine auto duct line 2.
Main Features
Name: Notching station
Material: 9CrSi
Features: TDF notching, sharp notching
Totally four sets of notching molds capable of TDF notching, sharp notching, Pittsburgh notching.
It is among the most important working station of auto duct line 2 manufactured by Preda Machine.
Machine Parts
Name: Beader and Leveler
Material: SAE4142
Features: This is first working station of auto duct line 2. In this station, there are totally three sets of leveling rollers and one set of beading rollers making the beading and leveling perfect.
Main Features
Name: Computer screen
System: MITSUBISHI
We chosed the MITSUBISHI system, the system is stable, and it is recognized by many domestic and foreign customers, and the operation is very convenient. Computer operators do not take up space.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machines.
* Engineers available to service machinery overseas.
MORE DETAILS OF PREDA MACHINE AUTO DUCT LINE 2!
Auto duct line 2 performs almost the entire cycle of a rectangular duct (straight sections) - leveling, grooving, cutting corners under the flange and cutting(except for Folding,Pittsburgh lock forming and TDF flange forming!).
After the auto line duct 3, Pittsburgh seam closer machine,TDF folding machine/ Pneumatic TDF folding machine and TDF flange former must be fixed to the ends.
With auto duct line 2 production process duct becomes more economical, faster and much more precise.
Production of large amounts of high-quality ducts can increase sales on the market in a short time, which makes those
manual shops would never compete with you!
The line consists of metal sheet cradle (usually its two or four decoilers to feed different thickness raw material for different duct diameters), feeding system with servo drive motor, beading rollers - to make stiffener ribs on the duct surface!
Shape and square notching and hydraulic cutting guillotine station.
The duct line 2 is automatically controlled by CNC PLC system with high-precision servo motors with feedback that allows you to achieve high accuracy, performance and reliability of the line.
The maximum operating speed of the line - 16m / min. Deviation ± 0.5 mm in length. Deviation ± 0.8 mm diagonal.
Multiple control modes – automatic, semi-automatic, manual or customized.
Auto production line ducts equipped with one, two or three decoilers, depending on the demands of the customer.
Use of this line allows you to automate the process of making the duct and achieve up to 30000 square mtrs of air ducts in the month!
